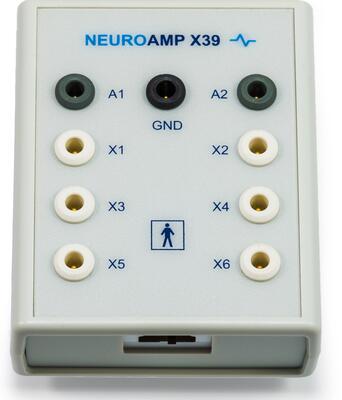

NeuroAmp x39 QEEG device
NeuroAmp x39 QEEG device NeuroAmp x39 QEEG device NeuroAmp x39 QEEG device

NeuroAmp x39 QEEG device

Item No.: A001171

Short description

39-channel-EEG amplifier for measurement of electroencephalogram (EEG) in neurodiagnostics, EEG/ERP research or biomarker development, with impedance meter and digital connection to EEG NeuroAmp® II.5s

Features:
  • Ultra low-noise EEG amplifier with 39-channels*
  • Low-noise preselector stage, high band width, very high sampling rate and DC interface
  • Connection for standard EEG caps with 19/21/31 electrodes
  • Connection for replacement electrodes
  • Connection for EEG NeuroAmp® II.5s
  • Device control exclusively via computer software
  • Approved medical device
* Device only operates with EEG NeuroAmp® II.5s
Technical details:
  • Low-noise 39-channel EEG amplifier with 24-bit A/D-converter and DC interface
  • Sampling rate 1Msps
  • Impedancemeter with operation range <5k-100k Ohm
  • D-Sub 37-connector for standard electrode caps (19/21/31 electrodes)
  • Nine 1,5mm DIN connectors for additional EEG-electrodes for ground, A1, A2 and six replacement electrodes
  • Digital connection to EEG NeuroAmp® II.5s
  • 3.3V/5.5V supply voltage via EEG NeuroAmp® II.5s
Included in delivery:
  • 39-channel EEG amplifier

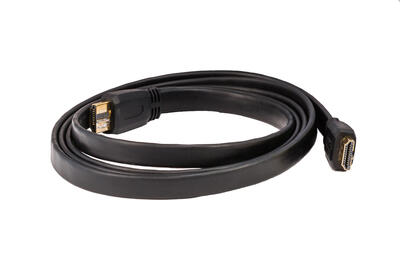

  • Digital Interface-cabel to connect to EEG NeuroAmp® II.5s
