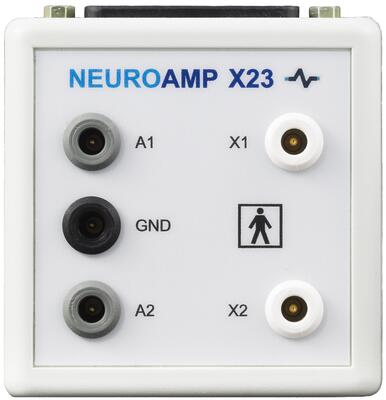

NeuroAmp x23 QEEG device
NeuroAmp x23 QEEG deviceNeuroAmp x23 QEEG deviceNeuroAmp x23 QEEG device

NeuroAmp x23 QEEG device

Item No.: A001170

Short description

23-channel EEG amplifier for measurement of electroencephalogram (EEG) in neurodiagnostics, EEG/ERP-research or biomarker development, with impedance meter and digital connector for EEG NeuroAmp® II.5s

Features:
  • Ultra low-noise EEG amplifier with 23-channels*
  • Low-noise preselector stage, high bandwidth, very high sampling-rate and DC-interface
  • Connection for standard EEG-caps with 19/21/23 electrodes
  • Connectors for replacement electrodes
  • Connector for EEG NeuroAmp® II.5s
  • Complete device control through computer software
  • Approved medical device
* Device only operates in connection with EEG NeuroAmp® II.5s
Technical details:
  • Low noise 23-channel EEG amplifier with 24-bit A/D-convertor and DC-interface
  • Sampling rate 1Msps
  • Impedance-meter with operational range <5k-100k Ohm
  • D-Sub 25-socket to connect standard electrode caps (19/21/23 electrodes)
  • Five 1,5mm DIN sockets to connect additional EEG-electrode for grounding, A1, A2 and two replacement electrodes of choice
  • Digital connector to EEG NeuroAmp® II.5s
  • Supply voltage 3.3V/5.5V via EEG NeuroAmp® II.5s
Included in delivery:
  • 23-channel EEG amplifier

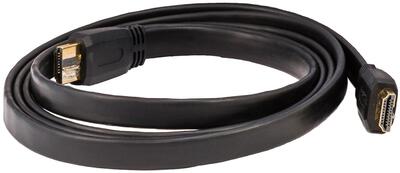

  • Digital interface cable for connection to EEG NeuroAmp® II.5s
